Universal Microscopes (WESCO)

A Division of Terran Technology, Inc.

WESCO Universal Microscopes

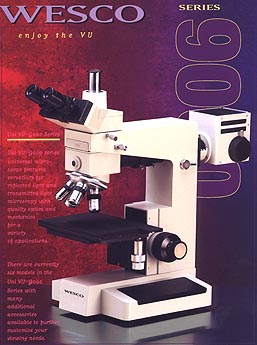

WESCO Uni VU 9000 Series Universal Microscopes

The Uni VU 9000 series universal microscope features versatility for reflected light and transmitted light microscopy with quality optics and mechanics for a variety of applications.

There are currently six models in the Uni VU 9000 Series with many additional accessories available to further customize your viewing needs.

SPECIFICATIONS	UNI VU 9000 MODELS
SPECIFICATIONS	9200T	9200R	9200TR	9300T	9300R	9300TR
Transmitted light stand		-	-		-	-
Reflected brightfield, darkfield & polarizing light stand	-		-	-		-
Universal reflected and transmitted light stand	-	-		-	-
30 degree binocular observation body				-	-	-
30 degree trinocular observation body	-	-	-
10X widefield eyepieces, 20mm field of view
Reverse angle revolving quintuple nosepiece		-			-
Front angle revolving quintuple nosepiece	-			-
DIN 4X, 10X, 25X, 40XR & 100XR oil plan achromatic objectives		-			-
DIN BF4X, DF10X, DR25X & DR40X & BF63X plan achromatic objectives	-			-
Coaxial coarse and fine focus with tension control
150mm x 150mm flat top graduated mechanical stage with slide holder and low position 76mm x 50mm travel X-Y controls		-			-
145mm x 185mm metallurgical stage with low position 45mm x 55mm travel X-Y controls	-		-	-		-
N.A. 1.25 ABBE condenser		-			-
12 volt 60 watt halogen illumination with variable light control
Field iris diaphragm		-			-

MODEL NO.	PRODUCT DESCRIPTION
Uni VU 9200T	Brightfield transmitted light stand with binocular body, 4X, 10X, 20X, 40XR & 100XR oil plan achromatic objectives, mechanical stage, 12 volt 50 watt halogen illumination.
Uni VU 9200R	Same as 9200T with brightfield/darkfield reflected light stand & metallurgical stage.
Uni VU 9200TR	Same as 9200R with transmitted and reflected illumination.
Uni VU 9300T	Same as 9200T with trinocular observation body.
Uni VU 9300R	Same as 9200R with trinocular observation body.
Uni VU 9300TR	Same as 9200TR with trinocular observation body.

For more information or to request a price quote, please contact us by phone at 408-871-7700, fax 408-871-7800, or email at labtekdiv@labtek.net.
