WESCO Inverted Microscopes

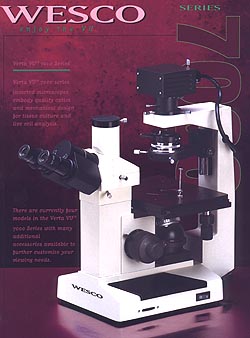

WESCO Verta VU 7000 Series Inverted Microscopes

Verta VU 7000 Series inverted microscopes embody quality optics and mechanical design for tissue culture and live cell analysis.

There are currently four models in the Verta VU 7000 Series with many additional accessories available to further customize your viewing needs.

SPECIFICATIONS	VERTA VU 7000 MODELS
SPECIFICATIONS	7300	7310	7325	7340
Seidentopf trinocular observation body
10X widefield eyepieces, 18mm field of view
Telescope eyepiece
Quadruple revolving nosepiece
Long working distance plan achromatic BF4X, PH10X, PH25X & PH40X objectives with phase annular		-	-	-
Long working distance plan achromatic BF4X, PH10X, BF25X & BF40X objectives with phase annular	-		-	-
Long working distance plan achromatic BF4X, BF10X, PH25X & BF40X objectives with phase annular	-	-		-
Long working distance plan achromatic BF4X, BF10X, BF25X & PH40X objectives with phase annular	-	-	-
Coaxial coarse and fine focus with tension control
200mm x 140mm flat top graduated mechanical stage with low position 75mm x 30mm travel X-Y controls
N.A. 0.4 70mm long working distance condenser
6 volt 20 watt halogen illumination with variable light control
OPTIONS
Widefield 15X and 20X eyepieces
2.5X/4X change over photo attachment (includes 10X viewing eyepiece) and 4X view finder

For more information or to request a price quote, please contact us by phone at 408-871-7700, fax 408-871-7800, or email at labtekdiv@labtek.net.
