WESCO Metallurgical Microscopes

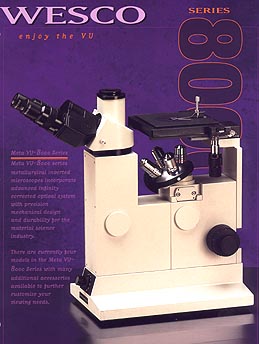

WESCO Meta VU 8000 Series Metallurgical Microscopes

Meta VU 8000 Series metallurgical inverted microscopes incorporate an advanced infinity corrected optical system with precision mechanical design and durability for the material science industry.

There are currently four models in the Meta VU 8000 Series with many additional accessories available to further customize your viewing needs.

SPECIFICATIONS	META VU 8000 MODELS
SPECIFICATIONS	8200	8220	8300	8320
Inverted metallurgical microscope stand
Seidentopf binocular observation body			-	-
Seidentopf trinocular observation body	-	-
10X widefield eyepieces, 20mm field of view
Quadruple revolving nosepiece
Infinity plan achromatic M5X objective
Infinity achromatic M10X objective		-		-
Infinity achromatic M20XS objective		-		-
Infinity achromatic M50XS objective		-		-
Infinity plan achromatic M10X objective	-		-
Infinity plan achromatic M20X objective	-		-
Infinity plan achromatic M50X objective	-		-
Coaxial coarse and fine focus with tension control
120mm x 128mm metallurgical stage with low position 76mm x 50mm travel X-Y controls and specimen holder
6 volt 15 watt incandescent illumination with variable light control
OPTIONS
15X and 20X widefield eyepieces
Filar micrometer eyepiece
Infinity plan achromatic M100X objective

For more information or to request a price quote, please contact us by phone at 408-871-7700, fax 408-871-7800, or email at labtekdiv@labtek.net.
