Educational Microscopes (WESCO)

WESCO Educational Microscopes

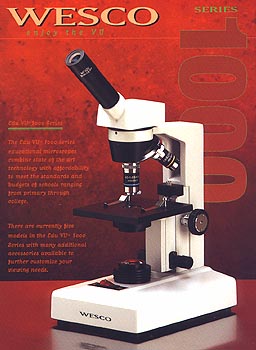

WESCO Edu VU 1000 Series Educational Microscopes


The Edu VU 1000 series educational microscopes combine state of the art technology with affordability to meet the standards and budgets of schools ranging from primary through college.

There are currently five models in the Edu VU 1000 Series with many additional accessories available to further customize your viewing needs.

SPECIFICATIONS	EDU VU 1000 MODELS
SPECIFICATIONS	1100	1110	1120	1200	1300
Monocular observation body				-	-
Dual monocular observation body	-	-	-		-
Binocular observation body	-	-	-	-
10X widefield eyepiece, 18mm field of view				(2)	(2)
Reverse angle revolving quadruple nosepiece
DIN 4X, 10X & 40XR achromatic objectives			-	-	-
DIN 4X, 10X, 40XR & 100XR oil achromatic objectives	-	-
Acid and reagent resistant 100mm x 115mm stage plate with stage clips		-	-	-	-
Acid and reagent resistant 100mm x 115mm stage plate w/attachable X-Y mechanical stage	-		-	-	-
Acid and reagent resistant 100mm x 115mm flat top graduated mechanical stage with low position 76mm x 50mm travel X-Y controls	-	-
Built-in 0.65 N.A. fixed condenser with iris diaphragm and filter holder			-	-	-
Focusable ABBE 1.25 N.A. condenseer with iris diaphragm and swing-out filter holder	-	-
7 watt fluorescent illumination
Electrical cord hanger
OPTIONS
Eyepiece pointer
Five hole disc condenser			-	-	-
Attachable mirror

MODEL NO.	PRODUCT DESCRIPTION
Edu VU 1100	Inclined monocular, DIN 4X, 10X, & 40XR objectives, 10X widefield eyepiece, stage clips, N.A. 0.65 condenser with iris diaphragm, 7 watt fluorescent illumination.
Edu VU 1110	Same as 1100 with attachable mechanical stage.
Edu VU 1120	Same as 1100 with low position mechanical stage and 100XR oil objective, focusable 1.26 ABBE condenser with iris diaphragm.
Edu VU 1200	Dual monocular, DIN 4X, 10X, 40XR & 100XR oil objectives, 10X widefield eyepiece, low position mechanical stage, focusable 1.25 ABBE condenser with iris diaphragm, 7 watt fluorescent illumination.
Edu VU 1300	Inclined binocular head, DIN 4X, 10X, 40XR & 100XR oil objectives, 10X widefield eyepieces, low position mechanical stage, focusable 1.25 ABBE condenser with iris diaphragm, 7 watt fluorescent illumination.

For more information or to request a price quote, please contact us by phone at 408-871-7700, fax 408-871-7800, or email at labtekdiv@labtek.net.
