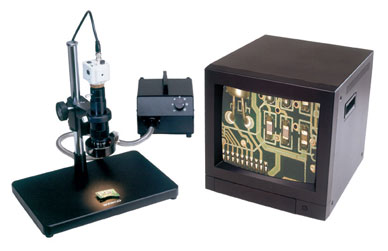

WESCO VS Video Inspection System



bullet  WESCO VS Video Inspection System

The VS offers a wide zoom range of 0.7X - 4.5X with excellent optical quality and smooth zoom mechanism. A full line of accessories and stands makes the VS ideal for education, industrial or OEM applications.


VS Technical Data:

Auxiliary Lens

0.3X

0.5X

1.0X

2.0X

1.5X

Total Magnification

4.8X - 30X

8X - 50X

16X - 100X

24X - 150X

32X - 200X

Field of View @ 0.7X

33 x 26mm

16.5 x 13mm

11 x 8.5mm

8.25 x 6.5mm

5.5 x 4.250mm

Field of View @ 4.5X

5.5 x 4 mm

2.75 x 2mm

2 x 1.3mm

1.375 x 1mm

1 x 0.65mm

Working Distance

273mm

164mm

92mm

36mm

29mm

*Technical data achieved using 14" monitor and 1/2" CCD camera.



VS Specifications:

  • Zoom Lens:  07.X - 4.5X
  • Working Distance:  92mm
  • Base:  380mm x 260mm
  • Focus Arm Range:  60mm



For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.
