Peacock Inch Scale Dial Gauges & Indicators



Peacock Inch Scale Dial Gauges & Indicators

Labtek is the authorized North American dealer/distributor of Peacock Dial & Digital Indicators, Gauges and Calipers.  All Peacock products conform to ISO specifications and are tested to provide the highest quality and accuracy available.  Labtek also offers Peacock accessories such as contact points, color caps, and replacement parts (repair service is available).

NOTE:  Not all gauge models are depicted below.   For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.



Dial Gages (0.001" - 0.0001")
  • Easy to read distinct graduations.
  • Inch models have standard black needles and white dial faces, or high visibility orange needles and black faces.
  • Hard, satin-chrome finish.
  • Superior quality spindle rack, pinions and gear trains ensure longevity.
  • Meets or exceeds applicable US Federal specifications.
  • Conforms to AGD specifications.
  • Revolution counter on all models, except 1200.
MODEL GRADUATION & RANGE READING DESCRIPTION
1200 0.001" - 0.2" 0-100 Lug back, white face
1330 0.001" - 1.0" 0-100 Lug back, white face
1330B 0.001" - 1.0" 0-100 Lug back, black face
1310 0.001" - 0.50" 0-100 Lug back, white face
1310B 0.001" - 0.50" 0-100 Lug back, black face
1364 0.001" - 2.0" 0-100 Lug back, white face
1364B 0.001" - 2.0" 0-100 Lug back, black face
1440 0.0001" - 0.05" 0-10 Lug back, white face
1440B 0.0001" - 0.05" 0-10 Lug back black face
1460 0.0001" - 0.05" 0-5-0 Flat back, white face
1460B 0.0001" - 0.05" 0-5-0 Flat back, black face
Dial Gages, Metric (0.01mm)
  • Easy to read distinct graduations.
  • Metric models have yellow dial faces.
  • Hard, satin-chrome finish.
  • Superior quality spindle rack, pinions and gear trains ensure longevity.
  • Meets or exceeds applicable US Federal specifications.
  • Conforms to AGD specifications.
  • Revolution counter on all models, except 1201.
MODEL GRADUATION & RANGE READING DESCRIPTION
1201 0.01mm - 2.0mm 0-100 Lug back
1311 0.01mm - 10.0mm 0-100 Lug back
1331 0.01mm - 20.0mm 0-100 Lug back
1361 0.01mm - 50.0mm 0.-100 Lug back
Pic Test Indicators
  • Auto-reversing.
  • Comes complete with .038", .078", .125" dia. hard-chromed contact points, clamping bars, wrench & three stems: 3/8", 1/4" & 5/32".
  • 180 Deg. swing on point & shaft.
  • Fully jeweled movements.
  • White faces have black needles, numbers & graduations.   Black faces have bright, fluorescent orange needles with white numbers & graduations.
  • Dial diameter is 3/8".
  • Universal positioning capability.
  • Dovetails on top, back & front.
  • Excellent rigid & oil-proof construction.
  • Non-magnetic.
MODEL GRADUATION & RANGE READING POINT LENGTH
Horizontal Type
2000 0.0005" - 0.030" 0-15-0 0.750", white face
2000B 0.0005" - 0.030" 0-15-0 0.750", black face
2010 0.0001" - 0.008" 0-4-0 0.375", white face
2010B 0.0001" - 0.008" 0-4-0 0.375", black face
2030 0.0005" - 0.040" 0-20-0 1.750", white face
2030B 0.0005" - 0.040" 0-20-0 1.750", black face

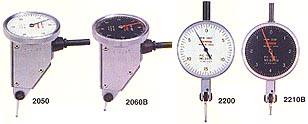

Vertical Type
2050 0.0005" - 0.030" 0-15-0 0.750", white face
2050B 0.0005" - 0.030" 0-15-0 0.750", black face
2060 0.0001" - 0.008" 0-4-0 0.375", white face
2060B 0.0001" - 0.008" 0-4-0 0.375", black face
Large Dial Face Type
2200 0.0005" - 0.030" 0-15-0 0.750", white face
2200B 0.0005" - 0.030" 0-15-0 0.750", black face
2210 0.0001" - 0.008" 0-4-0 0.375", white face
2210B 0.0001" - 0.008" 0-4-0 0.375", black face


Dial Thickness Gages
  • Designed for quick & accurate measurement of small pars, sheet metal, paper, fabric, etc.
  • Convenient, one-handed operation.
  • Preloaded spindle for consistent measuring pressure.
  • Adjustable zero setting with bezel & bezel clamp.
  • Baked enamel finish.
  • Distinct, fine graduations for easy reading.
  • Spindle made of hardened tool steel.
MODEL GRADUATION & RANGE THROAT DESCRIPTION
4600 0.001" - 0.5" 0.78"
4620 0.001 - 1.000" 4-3/4"
CS-10N 0.001 - 0.4" 13/64" DISCONTINUED


Dial Bore Gage Sets
  • Each set includes a high quality ADG2 indicator with .0001" graduations.
  • High precision, combined with ultra smooth movement, makes this the set for the most demanding users.
  • Set comes complete with protective cover & fitted case.
  • For close tolerance measurements of hole sizes, ID taper dimensions & roundness.
  • Each set includes a reference chart, clearly specifying ring & rod sizes for each measurement range.
MODEL MEASURING RANGE BORE DEPTH NO. OF ANVILS & WASHERS FACEPLATE TYPE
5710 0.250" - 0.400" 2" 7 - NA White
5710B 0.250" - 0.400" 2" 7 - NA Black
5730 0.370" - 0.750" 2.4" 9 - 1 White
5730B 0.370" - 0.750" 2.4" 9 - 1 Black
5740 0.750" - 1.50" 4" 8 - 2 White
5740B 0.750" - 1.50" 4" 8 - 2 Black
5750 1.50" - 2.50" 6" 6 - 2 White
5750B 1.50" - 2.50" 6" 6 - 2 Black
5770 2.00" - 6.00" 10" 11 - 2 White
5770B 2.00" - 6.00" 10" 11 - 2 Black
5790 6.00" - 10.0" 10" 9 - 4 White
5790B 6.00" - 10.0" 10" 9 - 4 Black
