Peacock Lever Type Dial Indicators



Peacock Lever Type Dial Indicators (New Pic Test)

Labtek is the authorized North American dealer/distributor of Peacock Dial & Digital Indicators, Gauges and Calipers.  All Peacock products conform to ISO specifications and are tested to provide the highest quality and accuracy available.  Labtek also offers Peacock accessories such as contact points, color caps, and replacement parts (repair service is available).

NOTE:  Not all gauge models are depicted below.   For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.

PCN-0.jpg (5227 bytes)PCN-1A.jpg (5662 bytes)PCN-S.jpg (6074 bytes)    PCN-7A.jpg (5036 bytes)PCN-5.jpg (5573 bytes)
New Pic Test (Without Change Lever "PCN Series")
  • This lever type has no change lever, the contact point inverses automatically in normal or reverse direction as desired.
  • A miniature bearing is used as a bearing at the pivot of the contact point to show good indication stability without any effect by rod play.
  • Oil resistance is enhanced by seating the O-ring in the turning section of the outer frame.
MODEL NO. GRADUATION & RANGE READING CONTACT POINT LENGTH DESCRIPTION
PCN-0 0.01 x 0.5 mm 0-25-0 17.74mm Small dial face (f 29)
PCN-1A 0.01 x 0.5 mm 0-25-0 17.74mm --
PCN-1B 0.01 x 0.8 mm 0-25-0 18.63mm --
PCN-1L 0.01 x 1.0 mm 0-50-0 39.00mm Long contact point
PCN-2 0.002 x 0.28 mm 0-140-0 14.18mm --
PCN-2B 0.002 x 0.2 mm 0-100-0 13.00mm --
PCN-S 0.001 x 0.14 mm 0-70-0 8.13mm High accuracy
PCN-5 0.01 x 0.5 mm 0-25-0 17.74mm Vertical type
PCN-6 0.002 x 0.28 mm 0-140-0 14.18mm Vertical type
PCN-7A 0.01 x 1.5 mm 0-25-0 17.74mm Wide measuring range, short pointer is available
PCN-7C 0.002 x 0.6 mm 0-100-0

13.00mm

Wide measuring range, short pointer is available
New Pic Test (One Rotation "PCN Series")
  • The dial face is easy to read with light yellow and blue (dead zone).
  • Available with top (A) or bottom (B) dial face.
MODEL NO. GRADUATION & RANGE TRAVEL CONTACT POINT LENGTH DESCRIPTION
PCN-1BZ (A) 0.01 x 0.6 mm 0.7 mm 19.24mm Measuring force 0.3N
PCN-2Z (A) 0.002 x 0.2 mm 0.24 mm 14.18mm Measuring force 0.3N
PCN-1LZ (A) 0.01 x 0.8 mm 0.9 mm 39.00mm Measuring force 0.3N
PCN-1BZ (B) 0.01 x 0.6 mm 0.7 mm 18.63mm Measuring force 0.3N
PCN-2Z (B) 0.002 x 0.2 mm 0.24 mm 14.18mm Measuring force 0.3N
PCN-1LZ (B) 0.01 x 0.8 mm 0.9 mm 39.00mm Measuring force 0.3N
New Pic Test (Double Dial Type
"W Series")
The double dial type Pic Test has two dials at both sides, making it possible to cover unreadable points that are not possible by conventional Pic Tests.
MODEL NO. GRADUATION & RANGE READING CONTACT POINT LENGTH DESCRIPTION
PC-1BW 0.01 x 0.8 mm 0-40-0 19.24mm Change lever type
PC-1LW 0.01 x 1.0 mm 0-50-0 39.72mm Change lever type
PCN-1AE.jpg (5575 bytes)    PCN-2E.jpg (5657 bytes)    PCN-1LE.jpg (6063 bytes)    PC-1BE.jpg (5865 bytes)
New Pic Test (Super Low Measuring Force "E Series")
  • A lever dial gauge that is suitable for flaw-free measurement and for measurement of plastic products with a low measuring force.
  • The Measuring force is 0.05N, 0.1N or less.
  • Specifications and outer dimensions are the same as those of standard PC and PCN types.
MODEL NO. GRADUATION & RANGE READING CONTACT POINT LENGTH DESCRIPTION
Without Change Lever Type (CW Rotation Only)
PCN-1AE 0.01 x 0.5 mm 0-25-0 17.74mm Measuring force 0.05N
PCN-1BE 0.01 x 0.8 mm 0-40-0 18.63mm Measuring force 0.05N
PCN-2E 0.002 x 0.28 mm 0-140-0 14.18mm Measuring force 0.1N
PCN-1LE 0.01 x 1.0 mm 0-50-0 39.00mm Measuring force 0.05N, long contact point
Change Lever Type
PC-1AE 0.01 x 0.5 mm 0-25-0 18.20mm Measuring force 0.1N
PC-1BE 0.01 x 0.8 mm 0-40-0 19.24mm Measuring force 0.1N
PC-1LE 0.01 x 1.0 mm 0-50-0 39.72mm Measuring force 0.1N, change lever type, long contact point


New Pic Test (Non-electrifying & Complete Anti-magnetic "U Series")
  • Electric flow is blocked at the ceramic stem, even if the magnetic stand is electrified.
  • The dial face is light blue in color and easy to read.
  • Specifications and outer dimensions are the same as those of standard PC and PCN types, except for the stems.
MODEL NO. GRADUATION & RANGE READING CONTACT POINT LENGTH DESCRIPTION
PCN-1AU 0.01 x 0.5mm 0-25-0 17.74mm --
PCN-1BU 0.01 x 0.8 mm 0-40-0 18.63mm --
PCN-1LU 0.01 x 1.0 mm 0-50-0 39.00mm Long contact point
PCN-2U 0.002 x 0.28 mm 0-140-0 14.18mm --
PCN-2BU 0.002 x 0.2 mm 0-100-0 13.00mm --
PCN-SU 0.001 x 0.14 mm 0-70-0 8.13mm --
PCN-5U 0.01 x 0.5 mm 0-25-0 17.74mm --
PCN-6U 0.002 x 0.28 mm 0-140-0 14.18mm --


New Pic Test (Large Dial Face
"D Series")
  • The large dial face is easy to read due to larger scale spacing.
  • Screw type long stems are standard.
MODEL NO. GRADUATION & RANGE READING CONTACT POINT LENGTH DESCRIPTION
PCN-1AD 0.01 x 0.5 mm 0-25-0 17.74mm --
PCN-1LD 0.01 x 1.0 mm 0-50-0 39.00mm Long contact point
PCN-2BD 0.002 x 0.2 mm 0-100-0 14.18mm --
PCN-SD 0.001 x 0.2 mm 0-100-0 13.00mm --


New Pic Test (Change Lever Type
"PC Series")
  • A miniature bearing is used at the pivot of the contact point which provides good indication stability without any effect by rod play.
  • Oil resistance is enhanced by seating the O-ring in the turning section of the outer frame.
MODEL NO. GRADUATION & RANGE READING CONTACT POINT LENGTH DESCRIPTION
PC-1A 0.01 x 0.5 mm 0-25-0 18.20mm --
PC-1B 0.01 x 0.8 mm 0-40-0 19.24mm --
PC-1L 0.01 x 1.0 mm 0-50-0 39.72mm Long contact point
PC-2 0.002 x 0.2 mm 0-140-0 8.80mm --
PC-3 0.01 x 0.5 mm 0-25-0 18.20mm Parallel
PC-4 0.002 x 0.28 mm 0-140-0 8.80mm Parallel

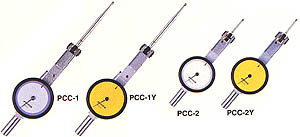

One Revolution Judging Test Gauge
  • These economical 0-0 gauges are specially made for checking alignment, parallelism and reference.
  • The dial face has only a single zero point.
  • The length & shape of the contact point can be changed for each specific measurement purpose.
  • To avoid reading errors, the pointer will only rotate one revolution.
MODEL NO. GRADUATION & RANGE READING CONTACT POINT LENGTH DESCRIPTION
PCC-1 Repeatability: 3mm
Backward error:  4
mm
-- 39.72mm White dial face, standard type, change lever type, includes contact point XP1L-2
PCC-1Y Repeatability: 3mm
Backward error:  4
mm
-- 39.72mm Yellow dial face, standard type, change lever type, includes contact point XP1L-2
PCC-2 Repeatability: 3mm
Backward error:  3
mm
-- 14.18mm White dial face, extra sensitive type, without change lever (CW rotation only), includes contact point XN2-2
PCC-2Y Repeatability: 3mm
Backward error:  3
mm
-- 14.18mm Yellow dial face, extra sensitive type, without change lever (CW rotation only), includes contact point XN2-2

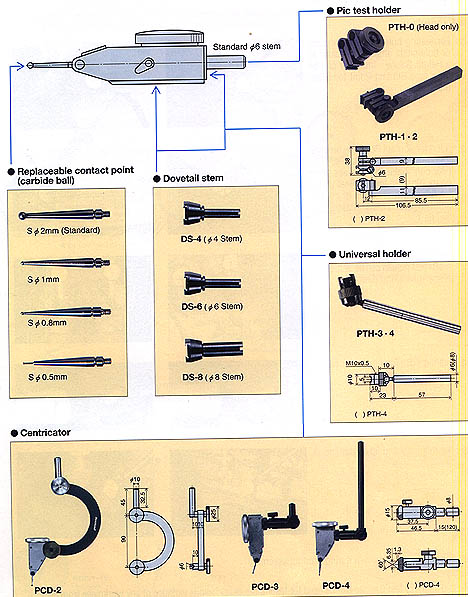

bullet Accessories (Contact Points, Holders, Centricators)

Please click on the thumbnail photo below for available Pic Test Indicator accessories.

NOTE:  Contact points are not interchangeable among different models.  Each indicator is assigned a specific contact point length.  Not using the proper contact point for the assigned model will result in inaccuracy.
