Nissho Optical Microscopes






Nissho stereo and stereo zoom microscopes are comprised of modular components which allow you to select the head, lenses, focusing arm, stand and illumination that best fits your needs.  Ideally suited for inspection, training, in-line processing, and other industrial applications, they offer high-quality optics for sharp, clear images at an economical price.





bullet Nissho Zoom Stereo Microscopes

The zoom stereo microscope enables the viewer to see objects with both eyes at high magnifications, which can be easily and quickly changed by the zoom optical system. With zoom, once you are in focus at the highest magnification (adjusted when you begin your observations), you can thereafter freely change the magnification ratio as you like - and your object always remains in clear, sharp focus.  The 45° inclined binocular head offers maximum viewing comfort.   The 30mm diameter eyepieces have an extra large field of view.  Zoom stereo microscopes are used primarily for examining specimens, checking and inspecting precision components, and sub-miniature assembly applications.  Dual-viewing stereo microscopes enable two people to examine the same object at magnifications of 2.5X to 80X.  They are well-suited for discussion and training purposes and for the demonstration of small components.

For more information or a price quote, please contact Labtek toll free at 877-837-7260, ph. 408-871-7700, fax 408-871-7800, or email labtekdiv@labtek.net.








FEATURES:

  • DZ-240 (Standard) and TZ-240 (Trinocular):
    -   10X to 60X (zoom 1X to 6X with 10X widefield paired eyepieces).
    -   Magnification range can be extended from 5X to 240X by selecting auxiliary lenses and eyepieces.
    -   Long working distance of 92mm makes it easy to work with nearly all specimens.
  • DZ-160 (Standard) and TZ-160 (Trinocular):
    -   10X to 40X (zoom 1X to 4X with 10X widefield paired eyepieces).
    -   Magnification range can be extended from 5X to 160X by selecting auxiliary lenses and eyepieces.
    -   Long working distance of 92mm makes it easy to work with nearly all specimens.

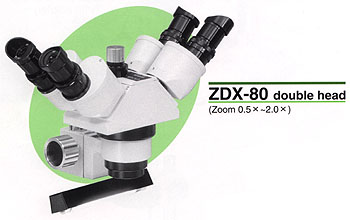

  • ZDX-80 (Double Head) Training/Teaching Microscope:
    -   5X to 20X (zoom 0.5X to 2X with 2 pairs of 10X widefield eyepieces).
    -   Magnification can be extended by selecting auxiliary lenses and eyepieces.
    -   Long working distance of 170mm makes it easy to work with nearly all specimens.
    -   Available with LED pointer.

  • DX-40 (Double Head) Training/Teaching Microscope:
    -   Same as ZDX-80 but with fixed 10X magnification (1X with 2 pairs of 10X widefield eyepieces).
    -   Magnification can be extended by selecting auxiliary lenses and eyepieces.
    -   Long working distance of 170mm makes it easy to work with nearly all specimens.
    -   Available with LED pointer.



Model No. Part No. Description
DZ-240 016 Binocular Zoom Head without eyepieces (1X-6X)
DZ-160 014 Binocular Zoom Head without eyepieces (1X-4X)
TZ-240 016T Trinocular Zoom Head without eyepieces (1X-6X)
TZ-160 014T Trinocular Zoom Head without eyepieces (1X-4X)
ZDX-80 112 Double Zoom Head without eyepieces (0.5X-2.0X)
ZDX-80PO 112P Double Zoom Head without eyepieces (0.5X-2.0X) with LED pointer
DX-40 111 Double Fixed Head without eyepieces (1X)
DX-40PO 111P Double Fixed Head without eyepieces (1X) with LED pointer



bullet Nissho Mini Stereo Microscopes

Small in size but outstanding in optical design and rugged in construction the Nissho Mini Stereo Microscopes offer crisp, clear, wide fields of view and super long working distance.  They provide all the basic functions of a larger microscope.   Because of their compact size and light weight, they can also be used outdoors for botanical observation.






FEATURES:

  • MDS-40 (Straight Head)
    -   Standard specification for a total magnification of 10X.
    -   Magnification range can be extended from 5X to 40X by selecting auxiliary lenses and eyepieces.
    -   Long working distance of 135mm.
  • MDS-50 (45° Inclined Head) and MDS-60 (60° Inclined Head)
    -   Standard specification for a total magnification of 10X.
    -   Magnification range can be extended from 10X to 40X by selecting auxiliary lenses and eyepieces.
    -   Long working distance of 185mm.



Model No. Part No. Description
MDS-40 214 Binocular Head without eyepieces (1X fixed)
MDS-50 215 Binocular Head without eyepieces (1X fixed)
MDS-60 216 Binocular Head without eyepieces (1X fixed)

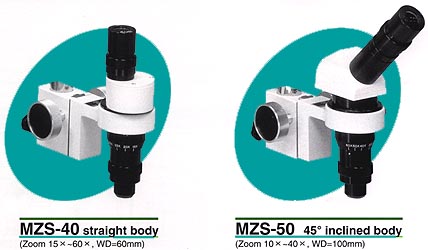

bullet Nissho Monocular Mini Zoom Microscopes

The Monocular Mini Zoom is useful in observing objects over a long range of magnification without disturbing the set-up due to changing of microscope lenses or to view components for causes of potential failure (i.e., pin cracks, blow holes in castings, etc.).  They offer constant focal length, great depth of field, large field of view at 15X, and smaller field of view at a higher magnification of 60X.




Model No. Part No. Description
MZS-40 314 Monocular Mini Zoom Head (Straight Body) without eyepieces (15X-60X)
MZS-40-U 314U Same as above but available with Universal Rotating Base
MZS-40-M 314M Same as above but available with Magnetic Mounting Base
MZS-50 315 Monocular Mini Zoom Head (45° Inclined Body) without eyepieces (10X-40X)

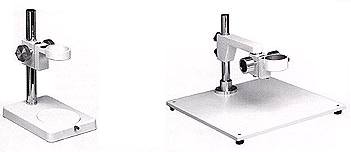

bullet Microscope Bases


"P" Plain Base

"LP" Large Plain Base

"ED" Transmitted
Light Base

"DF" Dark Field
Base w/Tweezers



Part No.

Description

050 "P" Plain Base
051 "LP" Large Plain Base with Focus Arm
055 "ED" Illuminated Base (for DS, DZ, DX, ZDX, TZ models)
056 "DF" Dark Field Base (for DS, DZ, DX, ZDX, TZ models)



bullet Eyepieces



Part No.

Description

001 5X, Pair (for DS, DZ, DX, ZDX, TZ, DZC models)
002 10X, Pair (for DS, DZ, DX, ZDX, TZ, DZC models)
003 15X, Pair (for DS, DZ, DX, ZDX, TZ, DZC models)
004 20X, Pair (for DS, DZ, DX, ZDX, TZ, DZC models)
004S 20X with scale, 0-100 (for DS, DZ, DX, ZDX, TZ, DZC models)
002C 10X with crossline (for DS, DZ, DX, ZDX, DZC models)
201 Mini 5X (for MDS-40, 50, 60 models)
202 Mini 10X (for MDS-40, 50, 60 models)
204 Mini 20X (for MDS-40, 50, 60 models)
202S Mini 10X with scale (for MDS-40, 50, 60 models)
202C Mini 10X with crossline (for MDS-40, 50, 60 models)



bullet Auxiliary Objectives



Part No.

Description

031 0.5X (for DS, DZ, TZ, DZC models)
032 0.75X (for DS, DZ, TZ, DZC models)
033 1.5X (for DS, DZ, TZ, DZC models)
034 2.0X (for DS, DZ, DZC models)
033W 1.5X (for DX, ZDX models only)
034W 2.0X (for DX, ZDX models only)
231U Mini 0.5X (for MDS-40U model only)
234U Mini 2.0X (for MDS-40U model only)
233 Mini 1.5X (for MDS-50, 60 models)
234 Mini 2.0X (for MDS-50, 60 models)
432 1.0X, 100mm W.D. (for ZMS models)
433 1.5X, 75mm W.D. (for ZMS models)
434 2.0X, 50mm W.D. (for ZMS models)
435 0.55X, 175mm W.D. (for ZMS models)
437 0.75X, 126mm W.D. (for ZMS models)



bullet Rack & Pinion Focus Arms



Part No.

Description

040 Focusing Arm (for DS, DZ, TZ models with P, ED, DF base)
041 Focusing Arm (for DS, DZ, TZ models with LP base)
042 Long Focusing Arm (for DS, DZ, TZ models with LP base)
241 Long Focusing Arm (for MDS-40, 50, 60 models)
240 Mini Focusing Arm (for MDS-40, 50, 60 models)
240U Mini Focusing Arm (for MDS-40U model only)



bullet Illuminators



"IL" Tungsten Filament
Illuminator
"FR" Fluorescent Ring
Illuminator



Part No.

Description

065 "IL" Tungsten Filament Exterior Light Source, 15 Watts
060 "FR" Fluorescent Ring Lamp, 6 Watts



Labtek is the authorized North American dealer for Nissho products.  For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.
