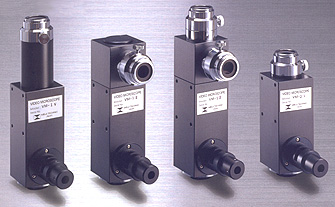

bullet MEIJI VM SERIES VIDEO MICROSCOPES

The VM Series high-resolution video microscopes have been specifically designed for viewing small electronic components, wave-guides, electro-mechanical assemblies, medical devices, seals, fibers, catheters, etc., which require high magnification visual inspection.  The VM Series microscopes integrate a CCD video camera, fiber optic illumination system, and high-resolution "infinity corrected" optics, and are ideal for use in factory automation and machine vision systems.



  • Outstanding high-resolution image.
  • Choice of objectives from 4X to 100X.
  • On screen video magnification from 110.06X to 5,503.3X (using 1/3" CCD camera and 13" color monitor).
  • Accepts all infinity corrected objectives with RMS thread and 200mm focal length.
  • Compact size:  7" x 2" (180mm x 45mm).
  • Light weight:  1.38 lb. (0.63 kg).
  • Machine mountable:  Four 4mm x 6mm threaded mounting holes are provided on three faces.
  • Coaxial "cool light" illumination with variable intensity light control.
  • Choice of configurations.
  • Optional filter sets available.


  • An ideal system for inspection and alignment on machine vision systems, or in quality control or quality assurance applications.
  • Machine mountable for difficult to access areas.
  • Can be used with a variety of peripheral equipment:   Video micrometers, video printers, VCR's, image archive systems, etc.
  • Multiple magnifications with interchangeable objective lenses.
  • Flexible configurations for OEM applications.
  • Portable, rugged, and ideally suited for remote site inspection.
  • Infinity corrected optics.
VM-1V with CK3900 Camera, and
FL150 Light Source & FL150/95 Light Guide
VM-PC Stand



Model VM-1V VM-1H VM-1D VM-2V
Video Mount "C" Mount
Orientation of CCD Camera Vertical Horizontal Vertical/Horiz. Vertical
Magnification of Built-in Tube Lens 1.0X 0.5X



For more information or a price quote, please contact Labtek at 408-871-7700, fax 408-871-7800, or email at labtekdiv@labtek.net.
