Meiji TM Series Educational Microscopes



Meiji TM Series educational & student microscopes offer a combination of superb optics, rugged dependability, economical pricing, and wide range of accessories. Multi-coated optical components, free from chromatic and spherical aberration, provide crystal-clear, high resolution images. Metal aluminum alloy microscope bodies and components with chemical-resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship with quality components and materials result in long-lasting, high-performance microscopes.

For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.



bullet Meiji TM200 Series Microscopes


The Meiji TM200 Series includes a practical range of academic microscopes that can stand up to heavy classroom punishment.  They are an affordable "student proof" microscope designed to meet or exceed laboratory requirements for science teaching programs. The Meiji TM200 microscope is available in a variety of junior high school, high school and college models.  Each is priced to fit your budget without sacrificing the important features you really need.

General Features:

  • Vertical and Inclined models.  Inclined models offer an eyepiece inclined 45°.  Vertical models feature an inclination joint in the base.
  • Safety-set eyepiece, illuminator and mirror.  Optical and mechanical components are locked-in to prevent students from removing them.
  • Spring-loaded 40X and 100X (oil) objectives retract into their barrel mounts upon contact to protect slides and objectives from damage.
  • Rack & pinion focusing to prevent gear damage and to help students produce sharp, crisp images faster and easier.  Also, a lever-type fine adjustment provides worm gear control for smooth fine focusing.
  • Choice of either a mirror or a 20 watt illuminator with alloy cast housing finished in chemically resistant paint.
  • All TM200 microscopes are pre-drilled and tapped to easily accept attachable mechanical stages.
  • Heavy guage all-metal stand eliminates vibrations.   Rubber foot protects desks from scratching damage.



Standard Models (Jr. High School & High School level)

Model Body Condenser Achromatic Objectives Eyepiece Illuminator
TM201 Vertical 0.65 N.A. Built-in 10X, 40X, & nosepiece plug
in triple nosepiece
10X Huygenian Mirror
TM202 Inclined 0.65 N.A. Built-in 10X, 40X, & nosepiece plug
in triple nosepiece
10X Huygenian Mirror
TM203 Vertical 0.65 N.A. Built-in 10X, 40X, & nosepiece plug
in triple nosepiece
10X Huygenian Illuminator 20W
TM204 Inclined 0.65 N.A. Built-in 10X, 40X, & nosepiece plug
in triple nosepiece
10X Huygenian Illuminator 20W
TM205 Inclined 0.65 N.A. Built-in 10X, 40X, & nosepiece plug
in triple nosepiece
10X-20X Huygenian Zoom Illuminator 20W
TM206 Vertical 0.65 N.A. Built-in 4X, 10X, 40X, in triple nosepiece 10X Widefield Mirror
TM207 Inclined 0.65 N.A. Built-in 4X, 10X, 40X, in triple nosepiece 10X Widefield Mirror
TM208 Vertical 0.65 N.A. Built-in 4X, 10X, 40X, in triple nosepiece 10X Widefield Illuminator 20W
TM209 Inclined 0.65 N.A. Built-in 4X, 10X, 40X, in triple nosepiece 10X Widefield Illuminator 20W
TM210 Inclined 0.65 N.A. Built-in 4X, 10X, 40X, in triple nosepiece 10X-20X Widefield Zoom Illuminator 20W

Oil Immersion Models (College level)

Model Body Condenser Achromatic Objectives Eyepiece Illuminator
TM211 Vertical 1.25 N.A. Abbe
in focus mt.
10X, 40X, 100X oil in triple nosepiece 10X Widefield Mirror
TM212 Inclined 1.25 N.A. Abbe
in focus mt.
10X, 40X, 100X oil in triple nosepiece 10X Widefield Mirror
TM213 Vertical 1.25 N.A. Abbe
in focus mt.
10X, 40X, 100X oil in triple nosepiece 10X Widefield Illuminator 20W
TM214 Inclined 1.25 N.A. Abbe
in focus mt.
10X, 40X, 100X oil in triple nosepiece 10X Widefield Illuminator 20W
TM215 Inclined 1.25 N.A. Abbe
in focus mt.
10X, 40X, 100X oil in triple nosepiece 10X-20X Widefield Zoom Illuminator 20W

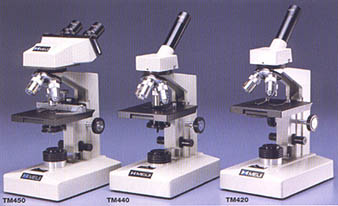

bullet Meiji TM420, TM440 and TM450 Microscopes


Meiji TM420, TM440 and TM450 educational microscopes are modern high-performance instruments equipped with DIN standard S Flat achromatic objectives and widefield eyepieces.  They are specifically designed for student course work and undergraduate use, including monocular and binocular types with separate coarse and fine focusing movement.

The TM420 Monocular student microscope is intended for ordinary middlegrade teaching requirements.  The TM440 Monocular and TM450 Binocular College microscopes are suitable for higher grade applications employing 100X oil immersion objectives with a focusable NA 1.25 condenser.




Model TM420 TM440 TM450
Viewing Head Monocular 30° inclined locked-on head, 360° rotatable Binocular 30° inclined locked-on head, 360° rotatable twin focusing eyetubes and adjustable interpupillary separation, 52mm to 72mm
Eyepiece(s) DIN widefield eyepiece WF10X with built-in pointer, F.N. 18mm Paired DIN widefield eyepiece WF10X, one with built-in pointer, F.N. 18mm
Nosepiece Triple revolving nosepiece Quadruple revolving nosepiece
Objectives DIN S Flat 4X/0.10 NA, 10X/0.25 NA, 40X/0.65 NA DIN S Flat 4X/0.10 NA, 10X/0.25 NA, 40X/0.65 NA, 100X/1.25 NA oil*
(Objectives 20X and over are supplied in retractable mounts to prevent slide damage)
Condenser Built-in NA 0.65 with disc diaphragm Abbe substage condenser NA 1.25 in spiral focusing mount with iris diaphragm and 30mm filter tray**
Stage 115mm x 120mm stage with locked stage clips and drilled to accept attachable mechanical stage 115mm x 120mm stage with MA271 mechanical stage, 30mm x 70mm (X-Y) movements
Focusing Rack and pinion coarse focusing with separate lever-type fine focusing and with stopper
Illuminator Built-in illuminator with silvered 20W bulb Built-in illuminator with silvered 30W bulb
Special Feature Built-in focus slip clutch to prevent rack and pinion damage and tension adjustment collar on coarse focus
Size & Weight 150mm (W) x 210mm (D) x 320mm (H), 3.0 Kg 150mm (W) x 210mm (D) x 310mm (H), 3.5 Kg
Supplied with dust cover and manual in styrofoam case.
*A bottle of 15cc immersion oil is supplied for use with 100X oil immersion objectives.
**A clear blue filter is supplied to fit 30mm filter tray.

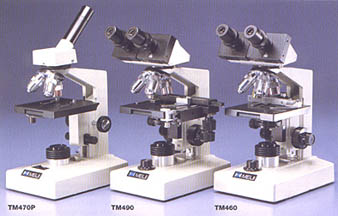

bullet Meiji TM460, TM490 and TM470P Microscopes


The Meiji TM460 and TM490 Binocular microscopes are provided with convenient coaxial coarse and fine focusing controls for greater comfort in use.  These microscopes are suitable for daily observation as well as the extended and stringent performance requirements in college.  The TM470P Monocular simple phase contrast microscope is equipped similar to the TM420 Monocular, but has a special phase annulus and green filter built into the disc diaphragm for simple phase contrast with 10X and 40X objectives.  No adjustment is needed.  In addition, a 4X standard objective is supplied.




Model TM460 TM490 TM470P
Viewing Head Binocular 30° inclined locked-on head, 360° rotatable twin focusing eyetubes and adjustable interpupillary separation, 52mm to 72mm Monocular 30° inclined locked-on head, 360° rotatable
Eyepiece(s) Paired DIN widefield eyepieces WF10X, one with built-in pointer, F.N. 18mm DIN widefield eyepiece WF10X with built-in pointer, F.N. 18mm
Nosepiece Quadruple revolving nosepiece Triple revolving nosepiece
Objectives DIN S Flat 4X/0.10 NA, 10X/0.25 NA, 40X/0.65 NA, 100X/1.25 NA oil* DIN S Flat 4X/0.10 NA, DIN Achromat Simple Phase 10X/0.25 NA, Simple Phase 40X/0.65 NA
(Objectives 20X and over are supplied in retractable mounts to prevent slide damage)
Condenser Abbe substage condenser NA 1.25 focusable by rack and pinion movement, with iris diaphragm and 30mm filter tray** Built-in NA 0.65 with disc diaphragm which has special phase annulus and green filter for simple phase contrast with 10X and 40X
Stage 115mm x 120mm stage with MA271 mechanical stage, 30mm x 70mm (X-Y) movement 115mm x 120mm stage with MA371 mechanical stage, 30mm x 70mm (X-Y) movement, with drop-down coaxial controls 115mm x 120mm stage with locked-on stage clips and drilled to accept attachable mechanical stage
Focusing Coaxial coarse and fine focusing controls with tension control and auto focus stop Rack and pinion coarse focusing with separate fine focus movement with stopper
Illuminator Built-in illuminator with silvered 30W bulb and variable brightness control Built-in illuminator with silvered 20W bulb
Size & Weight 150mm (W) x 210mm (D) x 320mm (H), 3.5 Kg 150mm (W) x 210mm (D) x 310mm (H), 3.5 Kg
Supplied with dust cover and manual in styrofoam case.
*A bottle of 15cc immersion oil is supplied for use with 100X oil immersion objectives.
**A clear blue filter is supplied to fit 30mm filter tray.



bullet Meiji TM480P Monocular Par Phase Contrast Microscope

The Meiji TM480P Monocular Par Phase Contrast microscope has an NA 1.25 condenser with phase annuli for 10X, 40X and 100X phase objectives.   The condenser also incorporates a dark-ground stop and position for brightfield with iris.  A 4X brightfield objective is also supplied for brightfield observation.




Model TM480P Par Phase Microscope TM480P.jpg (12403 bytes)
Viewing Head Monocular 30° inclined locked-on head, 360° rotatable
Eyepiece(s) DIN widefield eyepiece WF10X with built-in pointer, F.N. 18mm
Nosepiece Quadruple revolving nosepiece
Objectives DIN S Flat 4X/0.10 NA, DIN Achromat Phase 10X/0.25 NA, Phase 40X/0.65 NA, Phase 100X/1.25 NA oil*
(Objectives 20X and over are supplied in retractable mounts to prevent slide damage)
Condenser Abbe substage condenser NA 1.25 with phase annuli for 10X, 40X and 100X phase objectives. The condenser incorporates a dark-ground stop and position for brightfield with iris
Stage 115mm x 120mm stage with locked stage clips and drilled to accept attachable mechanical stage
Focusing Coaxial coarse and fine focusing controls with tension control and auto focus stop
Illuminator Built-in illuminator with silvered 20W bulb and brightness control
Size & Weight 150mm (W) x 210mm (D) x 320mm (H), 3.3 Kg
Supplied with dust cover and manual in styrofoam case.
*A bottle of 15cc immersion oil is supplied for use with 100X oil immersion objectives.



bullet Meiji TM400F Series with Super Lite Illuminator



The Meiji TM400F Series is an advanced teaching microscope with in-base "Super Lite" cool and long life fluorescent illuminator.

General Features:

  • Inclined 30° monocular head with 360° rotation and multi-coated high transmission prism.
  • Widefield WF10X eyepiece with pointer (15.5mm eyepoint) locked in.
  • DIN Achromatic objectives with retractable mount on 20X and above.
  • Built-in 0.65 NA condenser with disc diaphragm or 1.25 NA Abbe condenser with iris diaphragm on spiral mount.
  • Large stage 119mm x 124mm with locked in stage clips.
  • Rapid action coarse focus with rack and pinion and separate lever type fine focus.
  • Auto focus stop & slip clutch to prevent rack & pinion damage.
  • Coarse focus tension adjustment.
  • Triple or quadruple objective changer.
  • Rugged, well-balanced stand - 150mm (W), 210mm (D), 320mm (H) with non-slip feet.
  • Built-in Super Lite illuminator with extra long life bulb (up to 10,000 hrs.) and a "cool" minimum of heat build-up, with approved 3 wire grounded cord for 115V operation.





Component Part No. TM420F TM420FT TM422F TM440F TM470FP
  Body   Monocular bullet-prp.gif (338 bytes) a bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes)
  Teaching Head a bullet-prp.gif (338 bytes) a a a
  Eyepiece
  DIN
  WF10X   MA480P bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) a bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes)
  H10X   MA411 a a bullet-prp.gif (338 bytes) a a
  Objective
  DIN
  4X   MA190 bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) a bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes)
  10X   MA191 bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) a
  40XS   MA193 bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) a
  100XS Oil   MA195 a a a bullet-prp.gif (338 bytes) a
  P10X   MA241/05 a a a a bullet-prp.gif (338 bytes)
  P40XS   MA242/05 a a a a bullet-prp.gif (338 bytes)
  Condenser   Built-in NA 0.65 bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) a a
  Abbe NA 1.25 a a a bullet-prp.gif (338 bytes) a
  NA 0.65 Phase a a a a bullet-prp.gif (338 bytes)
  Illuminator   Super Lite, 5W Fluorescent bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes) bullet-prp.gif (338 bytes)



bullet Meiji MA355 Dual Viewing Head

All of the TM400 series models can be fitted with the MA355 Dual Viewing Teaching Head at the factory.  The vertical tube is used for connection to a TV camera or photo camera with the help of a "C" mount adapter or camera attachment.  The "C" mount adapter and camera attachments are optional.



TM440T Shown with
MA355 Teaching Head
TM460T Shown with MA355 Teaching Head
+ MA151 "C" Mount Adapter + CCD Camera
+ Color Video Monitor
