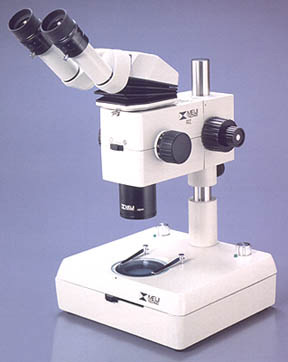

The RZ body (Model RZ-B) features a 10:1 zoom ratio, built-in variable double iris diaphragms, and positive détente click-stops at twelve positions of magnification. Two perpendicular columns of eight zoom lenses in four groups move in a smooth continuous motion by rotation of the ergonomically sized and positioned zoom control. A magnification indicator is conveniently located on the zoom control.
RZP Plain Stand: This stand consists of an anti-static finished aluminum allow base with a 95mm diameter black & white plastic stage plate and two stage clips. RZT Transmitted Light Stand: The RZT transmitted light stands are used for brightfield observation of transparent specimens. Features include a 6V 30W halogen lamp with variable intensity control, 95mm diameter clear glass stage plate, two stage clips and an anti-static finish. RZDT Brightfield/Darkfield Transmitted Light Stand: Used for brightfield/darkfield observation of transparent specimens. Features include a 6V 30W halogen lamp with variable intensity control, 95mm diameter clear glass stage plate, two stage clips and an anti-static finish. Quick change over from brightfield to darkfield is facilitated by front mounted controls. RZBD Brightfield/Darkfield Transmitted Light Stand: Used for brightfield/darkfield observation of transparent specimens. The RZBD stand incorporates an annular fiber optic light guide and an external 150W halogen light source. Features include a 6V 30W halogen lamp with variable intensity control, 95mm diameter clear glass stage plate, two stage clips, anti-static finish, and a built-in brightfield/darkfield baffle. Quick change over from brightfield to darkfield is facilitated by front mounted controls. MAC Universal Stands: Universal boom stand for special applications involving large specimens. Features a 506mm vertical post with hand-operated crank for easy vertical positioning. The 460mm horizontal articulared arm with lockable joints allows the RZ to be swung easily into position.
Graduated Mechanical Stage for RZP Stands: 0.1mm graduations and coaxial controls for precise control of mounted specimens. Features 116mm x 137mm work surface with stage clips, 50mm x 75mm X-Y travel. Part No. MA578 Graduated Mechanical Stage for RZT, RZBD, RZDT Stands: 0.1mm graduations and coaxial controls for precise control of mounted specimens. Features 116mm x 137mm work surface with stage clips and 74mm x 96mm clear glass plate for transmitted light stands, 50mm x 75mm X-Y travel. Part No. MA578/05 Ungraduated Sliding Mechanical Stage for RZP: 125mm x 170mm work surface with stage clilps. Roller bearing mount allows smooth, easy, fingertip control over 100mm x 100mm X-Y travel. Part No. MA565 Ungraduated Sliding Mechanical Stage for RZT, RZBD, RZDT: 125mm x 170mm work surface with stage clilps and a 94.5mm diameter clear glass plate for use the transmitted light stands. Roller bearing mount allows smooth, easy, fingertip control over 100mm x 100mm X-Y travel. Part No. MA565/05 Polarizing Stage for RZT, RZBD, RZDT: 150mm diameter rotatable stage with vernier markings to 1°. Includes stage slips and 1/4 Wave plate in sliding mount. Optional First order red plate is also available. Part No.: MA761 Small Sliding Stage for the MAC Universal Stand: Features a work surface of 295mm x 295mm. Roller bearing mounts allow smooth and easy fingertip control. X-Y Travel: 195mm x 100mm. Part No. MA575 Large Sliding Stage for the MAC Universal Stand: Features a large work surface of 390mm x335mm. Roller bearing mounts allow smooth and easy fingertip control. X-Y Travel: 350mm x 270mm. Part No. MA574
Coaxial Vertical Illuminator: Used when observing flat, highly reflective specimens such as integrated circuits, semiconductor wafers, polished metal, solder balls, or magnetic recording heads. Part No. COX 1/4 Wave Plate: Required when using the coaxial vertical illuminator to view reflective specimens. Part No. MA762 Oblique Illumination: Dual arm fiber optic illumination system. Composed of a 150W halogen light source, self-supporting dual arm light guides, connecting adapter and focusing lenses. Part No. FL181 Annular Illumination: Annular fiber optic light system. Composed of a 150W halogen light source, connecting adapter and annular light guide. Part No. FL182 Fluorescent Ring Illumination: Fluorescent ring illuminators provide cool, white diffuse illumination similar to daylight. Suitable for low magnification examination of delicate organisms that are sensitive to heat, or for specimens subject to surface reflection. Part No. MA305/100 (110V) or MA305/200 (220/240V). An adapter (Part No. MA308) is necessary to attach the illuminator. Filter Sets: The following optional paired optical filter sets are available.
Video "C" Mounts: "C" mounts are used to connect the video camera to the MA751 photo/video attachment and use projection lenses of various magnifications. Note: "C" mounts with reduction lenses (i.e. magnification factors less than 1.0X) are commonly used to compensate for the magnification increase inherent in CCD cameras and monitors. Part Numbers:
Drawing Attachment: Allows you to create high quality line drawings of specimens. Part No. MA765 Eyepiece Micrometers: Can be inserted into 10X, 15X or 20X eyepieces for specimen measurement. Linear scales, counting grids, and crossline micrometers are just a few of the choices available. Stage Micrometers: Used to calibrate the eyepiece micrometers. Available with both English and metric scales for reflected and transmitted light.
For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.
