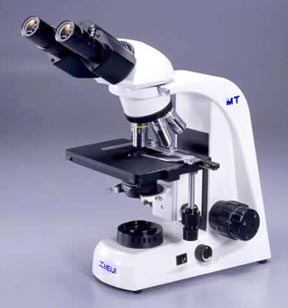

MEIJI MT4000 SERIES BIOLOGICAL MICROSCOPES

Meiji Techno's university grade upright microscope line is the new and cost-effective MT4000 Series Biological Microscopes. The MT4000 Series employs all new and improved Plan optics. Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio. The MT4000 Series features include:

Computer Aided Design
All New Infinity Corrected Optics
Ergonomically positioned controls
Comfortable Siedentopf viewing heads
Ergonomic Binocular Head Available
30W Halogen for Phase Contrast Models and LED Illumination for Brightfield Models
Brightfield, darkfield and phase contrast observation modes available

VIEWING HEADS
Model A815/05 is the Siedentopf-type binocular head and Model MA816/05 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. An optional ergonomic binocular viewing head adjustable vertically 10 to 50 degrees is also available.

EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard, and 15X and 20X eyepieces are available as an option. A Widefield High Eyepoint 10X focusable eyepiece that accepts 21mm reticules is also available.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES

Meiji Techno offers an assortment of Plan Infinity Corrected objectives for Brightfield, Darkfield and Phase Contrast observation modes.

STAGE
Ceramic coated left or right-handed, flat top stage measures 171mm x 115mm and travels 78mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls.

CONDENSER
New design Abbe 1.25 NA Condenser in quick change dovetail mount

ILLUMINATION

Powerful white LED or 30 watt halogen illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.

MT4000 Series Brightfield Models

Model

Head

Illumination

Eyepieces

Objectives

Stage

Condenser

MT4200L

Bino.

LED Illumination

KHW10x FN20

Plan 4x, 10x, 40x, 100x oil

Ceramic Coated Fixed flat-top left or right-handed controls

Abbe NA 1.25 in dovetail mount

MT4300L

Trino.

MT4200H

Bino.

30W Halogen Illumination

KHW10x FN20

Plan 4x, 10x, 40x, 100x oil

Ceramic Coated Fixed flat-top left or right-handed controls

Abbe NA 1.25 in dovetail mount

MT4300H

Trino.

MT4000 Series Phase Contrast Models *

Model

Head
Eyepieces
Objectives

Stage

Condenser
Illumination

MT4210L
Bino.
KWH10x FN20

Plan 4X,
S.Plan Ph10x, S.Plan Ph40x

Ceramic Coated Fixed flat-top

Turret Type
NA 1.25

LED Illuminator

MT4310L

Trino.

MT4210H
Bino.
KWH10x FN20

Plan 4X,
S.Plan Ph10x, S.Plan Ph40x

Ceramic Coated Fixed flat-top

Turret Type
NA 1.25

6V 30W halogen

MT4310H

Trino.

* Centering telescope is included with phase models.

For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.
