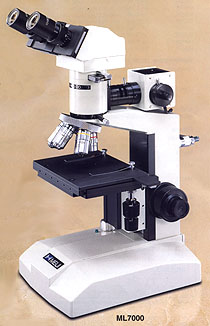

MEIJI ML7000 SERIES METALLURGICAL MICROSCOPES





The ML7000 Series features an Infinity Optical System for reflected light brightfield and simple polarization technique.  Equipped with either an erect image binocular or non-erect image trinocular viewing head inclined at 30 and rotatable through 360 for comfortable viewing.  Each eyetube is provided with graduated diopter adjustment.  The ML7500 Series offers high quality and dependability with a revolving quadruple nosepiece and 30W Koehler-type illuminator.

All ML7000 Series microscopes are supplied with styrofoam case, dust cover, and instruction manual.

Encompasses 2 configurations as listed below.


Viewing Heads

MA401/05, Binocular Head, erect image, with quartz depolarizer.

MA603/05, Trinocular Head, non-erect image, with quartz depolarizer.  A two position beam splitter beam splitter direct 100% of the light to the eyepieces or directs 80% of the light to the trinocular tube and 20% of the light to the eyepieces.

MA495/05, Inclined Trinocular Head, erect image, with quartz depolarizer.  A two position beam splitter beam splitter direct 100% of the light to the eyepieces or directs 100% of the light to the trinocular tube.

Illuminator

Vertical illuminator with full Koehler design equipped with 6V 30W Halogen light source, infinity system lens, field iris, aperture iris and filter slots.  Capable of brightfield or simple reflected light polarization technique.  Includes blue clear, green clear, polarizing and neutral density filter (ND8) in mounts.  Transformer and variable rheostat control are built in the microscope base.


Objective Changer & Objectives

Smooth operating, revolving quintuple ball-bearing nosepiece.

Infinity corrected S. Planachromat objectives:
MA336, MET 4X/0.10 S. Plan, WD 20mm (included)
MA330, MET 5X/0.10 S. Plan, WD 20mm
MA337, MET 10X/0.25 S. Plan, WD 7.48mm (included)
MA338, MET 20X/0.40 S. Plan, WD 5.28mm (included)
MA339, MET 40X/0.65 S. Plan, WD 0.81mm (included)
MA344, MET 50X/0.70 S. Plan, WD 0.36mm
MA349, MET LWD 50X/0.50 S. Plan, WD 6.0mm
MA329, MET 60X/0.85 S. Plan, WD 0.38mm
MA328, MET 100X/0.75 S. Plan, WD 0.27mm

Focusing Movement

Coaxial low positioned coarse and fine focus controls, graduated to 2 microns per division, are fitted with tension adjustment and safety auto stop.  The focus range is 35mm.   The movement runs in extra wide precision ball-bearing hardened steel tracks.


Eyepieces

MA407, KHW Compensating 10X, F.N. 20mm (included)
MA408, HWF 15X, High Eyepoint, F.N. 12.2mm
MA489, HWF 12.5X High Eyepoint, F.N. 15mm
MA409, HWF 20X, High Eyepoint, F.N. 9.2mm

Stage

Rectangular mechanical stage 172mm x 130mm top plate with 100mm x 100mm travel.  Equipped with precision ball bearing guides and low position drop down coaxial controls for X-Y movement.


MODEL BODY EYEPIECES OBJECTIVES ILLUMINATOR
ML7000 Binocular
(Erect Image)

KHW 10X, 20mm field of view

S-Plan MET 4X, 10X, 20X, 40X Vertical Koehler 6V 30W halogen with clear blue, clear green, neutral density (ND8) and and polarizing filter in mounts.
ML7100 Trinocular
(Non-erect Image)

NOTE:  Please specify voltage when ordering.




The following accessories for measurement are available for the ML7000 Series:

  • MA414, Filar Micrometer Eyepiece with inclined monocular head.
  • MA255, Linear Micrometer, 10mm divided into 100 units, 21mm diameter for KHW10X eyepiece.
  • MA256, Linear Micrometer, 5mm divided into 100 units, 21mm diameter for KHW10X eyepiece.
  • MA284, Cross-line Reticle, 21mm diameter for KHW10X eyepiece.
  • MA540, Cross-line with 0.1mm graduations, 21mm diameter for KHW10X eyepieces.
  • MA292, Metal Stage Micrometer, 1mm divided into 100 units, 0.01mm.
