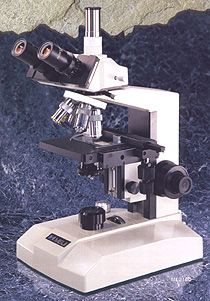

MEIJI ML2000 SERIES BIOLOGICAL MICROSCOPES






ML2000 Series biological microscopes offer high quality and dependability with Koehler 30W Halogen illumination.  They are available with brightfield and phase contrast optics and either binocular or trinocular body for full photographic and video applications.

All ML2000 Series microscopes are supplied with styrofoam case, dust cover, and instruction manual.

Encompasses 16 standard configurations as listed below.


Viewing Head

Available with standard binocular heads or trinocular heads for photomicrography, 30 inclined eyetubes, and rotatable through 360 for comfortable viewing.

Eyepieces

Paired DIN KVW10X Compensating super wide 20mm field of view eyepieces.


Objective Changer & Objectives

Smooth-operating, revolving quadruple ball-bearing nosepiece.   Six types of objectives are available: S Flat Achromats, SM Planachromats, Planachromats, SM Planachromat Phase, Achromat Phase, and Semi-plan Achromat Phase.

Illuminator

A built-in Koehler illuminator with field iris covers all aperture and field filling requirements from 4X to 100X objectives.  A 6V 30W halogen lamp with a variable intensity control is provided as standard equipment.


Stages

Two types of stages are available: The attached stage is a 120mm x 140mm rectangular mechanical stage with movements of 75mm (X) and 40mm (Y) and is graduated with vernier readings to 0.1mm, equipped with precision ball-bearing guides and low-positioned drop-down coaxial controls for X-Y movement.

The flat-top stage is a 171mm x 140mm rectangular stage with movements of 80mm (X) and 52mm (Y) and is graduated with vernier readings to 0.1mm.  Also equipped with precision ball-bearing guides and low-positioned drop-down coaxial controls for X-Y movement and a detachable specimen guide.



Condenser

An Achromatic, N.A. 1.25 substage condenser with iris diaphragm and filter tray is offered as standard equipment.




MODEL BODY EYEPIECES OBJECTIVES
(DIN)
CONDENSER MECHANICAL STAGE
ML2000 Binocular

10X, 20mm

S Flat 4X, 10X,
S40X, S100X oil
Achromatic N.A. 1.25 w/Blue Filter Attached
(right hand control)
ML2100 Trinocular 10X, 20mm S Flat 4X, 10X,
S40X, S100X oil
Achromatic N.A. 1.25 w/Blue Filter
ML2200 Binocular 10X, 20mm SM Plan 4X, 10X,
S40X, S100X oil
Achromatic N.A. 1.25 w/Blue Filter
ML2300 Trinocular 10X, 20mm SM Plan 4X, 10X,
S40X, S100X oil
Achromatic N.A. 1.25 w/Blue Filter
ML2400 Binocular 10X, 20mm SM Plan 4X, 10X,
S40X, S100X oil
Achromatic N.A. 1.25 w/Blue Filter Flat-top,
78mm x 52mm
movement
(right hand control)
ML2500 Trinocular 10X, 20mm SM Plan 4X, 10X,
S40X, S100X oil
Achromatic N.A. 1.25 w/Blue Filter
ML2600 Binocular 10X, 20mm Planachromat 4X,
10X, S40X, S100X oil
Achromatic N.A. 1.25 w/Blue Filter
ML2700 Trinocular 10X, 20mm Planachromat 4X,
10X, S40X, S100X oil
Achromatic N.A. 1.25 w/Blue Filter
ML2800 Binocular 10X, 20mm SM Plan 4X,
SM Plan Phase 10X,
S40X, S100X
Achromatic N.A. 1.25 with Phase annuli in sliding mount & Green filter Attached
(right hand control)
ML2900 Trinocular 10X, 20mm
ML2850 Binocular 10X, 20mm Flat-top,
78mm x 52mm
movement
(right hand control)
ML2950 Trinocular 10X, 20mm
ML2855 Binocular 10X, 20mm (w/centering telescope) Achromat Phase
10X, S20X, S40X, S100X oil
Zernike type Phase condenser N.A. 1.10 with Green filter Attached
(right hand control)
ML2955 Trinocular
ML2870 Binocular 10X, 20mm (w/centering telescope) Semi-plan Achromat Phase
10X, S20X, S40X, S100X oil
Zernike type Phase condenser N.A. 1.10 with Green filter Attached
(right hand control)
ML2970 Trinocular

NOTE:  A left-hand control mechanical stage is optional.  Please indicate the letter "L" after the model number when ordering the ML2000 series microscope with left-hand control mechanical stage (example: Model ML2200L).




The following accessories for Phase Microscopy are available for the ML2000 Series:

  • Slider Type Phase Microscopy (for Models ML2800, ML2900, ML2850 & ML2950).
    Unit comprising:  Achromatic substage condenser 1.25 NA with phase annuli (10X, 40X, 100X) in sliding mount with iris diaphragm.  DIN Phase 10X/0.25, S40X/0.65, S100X/1.25 (oil immersion) SM plan objectives.

  • Zernike Type Phase Microscopy (for Models ML2855, ML2955, ML2870, & ML2970).
    Unit comprising:  Zernike type 1.10 NA Phase condenser in turret mount, indivisual centerable phase annuli for 10X, 20X, 40X & 100X, with brightfield position and with iris and filter tray for 32mm diameter filter.  DIN Phase 10X/0.25, S20X/0.40, S40X/0.65, & S100X/1.25 Achromat objectives.  Centering telescope to check phase annulus.  Green clear filter, 32mm diameter.

  • Darkfield Condenser.  Cardiod type, for high power use (NA 1.25) in a a centering mount
    (to be used with 100X objective only).
