Meiji MC Series Measuring Microscopes




bullet Labtek offers the following Meiji MC Series measuring microscopes and a large selection of stands, focus arms, mechanical stages, objectives & eyepieces at discount prices.  For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.

Meiji Techno's MC Series Brightfield/Darkfield Precision Measuring Systems are capable of brightfield, darkfield, and simple polarization observation modes. They are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. Meiji Techno measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric. These systems can be configured for use with 35mm photomicrography, analog CCD video, digital CCD video, digital CMOS video and consumer-grade digital still camera systems. Operators can perform visual inspection and measurement of small items or components without complicated system setup. Mitutoyo Digimatic Micrometer heads have serial output for SPC applications. MC Series Systems are available in 110 or 220 volt, incident or transmitted, binocular or trinocular configurations.



MC-60T


Model MC-60

Our Model MC-60 is a reflective light brightfield/darkfield measuring microscope with binocular head.







Model MC-60T

The Model MC-60T, shown at left, is an incident and transmitted light brightfield/darkfield measuring microscope with binocular head. The MC-60T can also convert into a reflective light unit simply by moving the light guide from the base into the vertical illuminator tube.



Model MC-70

Our Model MC-70 is a reflective light brightfield/darkfield measuring microscope with trinocular head.





Model MC-70T

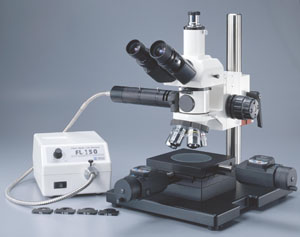

The Model MC-70T, shown at right, is an incident and transmitted light measuring microscope with trinocular head. The MC-70T can also convert into a reflective light unit simply by moving the light guide from the base into the vertical illuminator tube.




MC-70T





MC-70

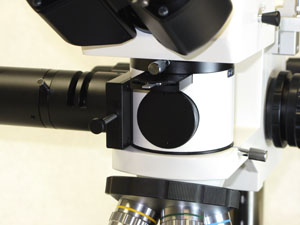

Sliding rotatable polarizer and darkfield lever

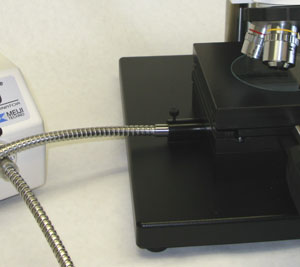

Transmitted stage light guide

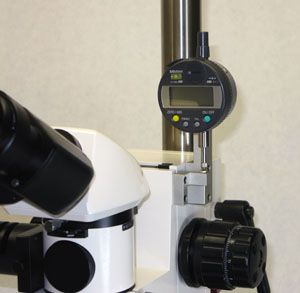

Optional Z-Axis Digimatic Indicator


MC Specifications

  Cat. No.

Model

MC-60 MC-60T MC-70 MC-70T
Viewing Head
MA815
Inverted image binocular head




MA816
Inverted image trinocular head




Eyepieces

MA859CF

MA817


Focusing eyepiece SWH 10X with cross-line reticule and guide pin. High eyepoint eyepiece SWH 10X, FN: 22, accepts optional 25mm diameter reticle




Objectives

MA923
MA924
MA925
MA926

Plan Epi BD 5X, N.A. 0.10, W.D. 17.0mm
Plan Epi BD 10X, N.A. 0.25, W.D. 7.48mm
Plan Epi BD 20X, N.A. 0.40, W.D. 5.20mm
Plan Epi BD 50X, N.A. 0.75, W.D. 0.38mm




Illuminator MA993





FL150/12


FL150/115
or
FL150/200

Vertical Koehler illuminator, focal length 200mm, with sliding rotatable polarizer, infinity tube lens. Filter Set: Blue Clear, Green Clear, Neutral Density ND25, and Polarizing filters in metal mounts. Port to accept FL150/12 flexible 36" (914.4mm) single arm fiber optic light guide. Flexible 36" (914.4mm) single arm fiber light guide for FL150/115.
Light source: 115V, 50-60Hz halogen lamp, 21V 150W. Light source: 230V, 50-60Hz halogen lamp, 21V 150W
Focus Block FU-3050

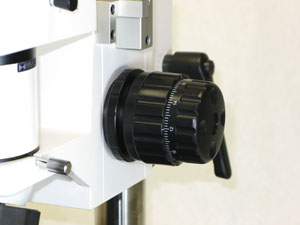

Coaxial coarse and fine focus block with BF/DF quadruple nosepiece
Stand MAC-11
Heavy Duty stand with pillar and mounting bracket. Diameter of pillar: 38mm, Height: 432mm, Base: 300 x 300 x 25mm
Stage MA728
Reflected light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement


MA729
Transmitted light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with glass stage plate



Accessories for MC Series

Catalog Number
Description
Viewing Heads
MA815
Binocular head - Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees.
MA816
Trinocular head - Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees.
MA979
Trinocular head - Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube.
Eyepieces
MA817
SWH10X Widefield high eyepoint eyepiece, Field No. 22.0, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
MA859CF
SWH10X-Focusing eyepiece with reticle mount with cross-line reticle, (Eye-tube O.D. 30.0 mm) (each) (MA859 accepts 25mm diameter reticle)
MA906
Eyeshield for MA817 SWH 10X eyepiece (each)
Illumination
MA993
Vertical Koehler illuminator, with sliding rotatable polarizer, infinity tube lens, focal length 200mm, with clear blue, clear green, and ND 25, neutral density and polarizing filter in metal mounts. Port to accept FL150/12 flexible 36 single flexible bundle light guide.
FL150/115
Light source: 110/120V, 50/60Hz operation, halogen lamp, 21V 150W, with variable light-intensity regulation, maximum color temperature 3,200 K, with AC fan. (USA)
FL150/200
Light source: 220/240V, 50/60Hz operation, halogen lamp, 21V 150W, with variable light-intensity regulation, maximum color temperature 3,200 K, with AC fan (Europe)
FL150/12
Single arm light guide (36 flexible) with special end tip to fit MA993 Vertical Illuminator
FL150/12-60
Single arm light guide (60 flexible) with special end tip to fit MA993 Vertical Illuminator
FL150/70
Spare bulb, 21V 150W (EKE) (For FL150/115 or FL150/200)
Brightfield/Darkfield Plan Epi Objectives
MA923
Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22
MA924
Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm , F.N. 22
MA925
Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm , F.N. 22
MA926
Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22
MA686/05
Adapter to mount 20.1mm RMS thread objective to BF/DF nosepiece
Digimatic Indicators *
MTI164-162
Mitutoyo Digimatic Indicator for X-Y axis movement. Range: 50mm (2") (each)
MTI543-542
Mitutoyo Digimatic Indicator (lug back) for Z axis movement. Range: 12.7mm (0.5") (each)
Eyepiece Micrometers
MA523
Cross-line reticle, 25mm diameter
MA506
10mm divided into 100 units, 25mm diameter
MA509
5mm divided into 100 units, 25mm diameter
MA524
10mm square into 400 parts, 0.5mm square, 25mm diameter
MA510
10mm square into 100 parts, 1.0mm square, 25mm diameter
MA542
Cross-line with 0.1mm graduations, 25mm diameter
MA541
Photo framing reticle for SWF10X eyepiece
Filters
MA275/25
Blue clear filter, 20.0mm diameter filter, in 30mm metal mount
MA275/30
Green clear filter, 20.0mm diameter filter, in 30mm metal mount
MA275/50
N.D. 50 neutral density filter, 20.0mm diameter filter, in 30mm metal mount
MA959
Polarizing filter, 20mm diameter filter, in 30mm metal mount
Stage Micrometers
MA285
Stage micrometer, 1mm divided into 100 units, each unit 0.01mm
MA286
Stage micrometer, 0.04" divided into 100 units, each unit 0.001 inch
MA292
Metal stage micrometer, 0.01mm, for reflected light applications
Miscellaneous
MA709
Dust cover for MC60 & MC70
MA569
Replacement glass stage plate for MA729 transmitted light stage
* Note:   MTI164-162 Digimatic Micrometer heads for X-Y axis movement and MTI543-252 Digimatic Micrometer heads for Z axis movement are sold separately.
