MEIJI TECHNO EMZ SERIES STEREO MICROSCOPES

Meiji Techno's EMZ Series offer a combination of superb optics, rugged dependability, economical pricing, and wide range of accessories.

Modular Flexibility:  Meiji stereo microscopes are tailored to fit the needs of each and every customer.  Modular design enables the user to engineer his own custom solution for virtually any application, selecting components from a wide range of stereo bodies, stands, eyepieces, supplementary lenses, illuminators, and accessory components.

Superb Optics: Multi-coated optical components, free from chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images rich in contrast, brightness, and correct in color. Excellent depth of field and flatness of image.

Rugged Dependability:   Metal aluminum alloy microscope bodies and components with chemical-resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship with quality components and materials result in long-lasting, high-performance microscopes.

Meiji Binocular EMZ Stereo Zoom Microscopes:

EMZ-1  (1X to 3X, 93mm WD)
EMZ-2  (0.7X to 4.5X, 93mm WD)
EMZ-5  (0.7X to 4.5X, 93mm WD)
EMZ-6  (0.62X to 4.0X, 108mm WD)
EMZ-9  (0.7X to 4.5X, 93mm WD)
EMZ-10  (0.7X to 4.5X, 110mm WD)
EMZ-12  (0.4X to 2.5X, 185mm WD)
EMZ-13  (1.0X to 7.0X, 90mm WD)
Z-7100  (0.7X to 4.5X, 110mm WD)

Meiji Trinocular EMZ Stereo Zoom Microscopes:

EMZ-2TR  (1X to 3X, 93mm WD)
EMZ-5TR  (0.7X to 4.5X, 93mm WD)
EMZ-8TR  (0.7X to 4.5X, 104mm WD)
EMZ-12TR  (0.4X to 2.5X, 185mm WD)
EMZ-13TR  (1.0X to 7.0X, 90mm WD)

Available types of focus blocks and stands:

Focus Blocks
Pole-Type Stands
Rigid Arm Stands
Stands with Extended Work Surface
Universal Boom Stands
Articulated Arm Stands, Clamp Boom Stand, Extended Surface Stand



EMZ-13 ZOOM STEREO BODY

Extended Zoom Ratio 7:1

Body: Binocular, all metal body, rotatable 360

Zoom Range: 1.0x - 7.0x

Zoom Control: Dual graduated bilateral mount

Magnification: 10x - 70x with 10x eyepieces

Field of View: 23mm - 3.14mm (with 10x eyepieces)

Working distance: 90mm

Eyetube Inclination: 45

Interpupillary Distance Adjustment: 54mm -75mm

Dioptric Adj: Dual (+/- 5 diopters)

Extended Magnification Range: 3x - 420x

Extended Working Distances: 32mm - 230mm

(with supplemental objectives and eyepieces)


EMZ-13TR ZOOM STEREO BODY

Extended Zoom Ratio 7:1

Body: Trinocular, all metal body, rotatable 360

Zoom Range: 1.0x - 7.0x

Zoom Control: Dual graduated bilateral mount

Magnification: 10x - 70x (with 10x eyepieces)

Field of View: 23mm - 3.14mm (with 10x eyepieces)

Working distance: 90mm

Eyetube Inclination: 45

Interpupillary Distance Adjustment: 54mm - 75mm

Dioptric Adj: Dual (+/- 5 diopters)

Extended Magnification Range: 3x - 420x

Extended Working Distances: 32mm - 230mm

(with supplemental objectives and eyepieces)



EMZ-12 ZOOM STEREO BODY

Body:  Binocular, all metal body, rotatable 360.   Features include extra long working distance of 233mm with optional 0.7X lens.   A socket is provided for a fiber optic light pipe.

Zoom Ratio:  6.2:1
Zoom Range:  0.4X to 2.5X
Zoom Control:  Dual, graduated, bilateral mount
Magnification Range:  4X - 2.5X (with 10X eyepieces)
Field of View:  57mm - 3mm
Working Distance:  185mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual (+ 5 diopters)

Extended Magnification Range:  1.4X - 75X (with optional auxiliary lenses & eyepieces)
Extended Field of View:  82.1mm - 4.4mm (w/optional lens)
Extended Working Distance:  233mm (with optional lens)

EMZ-12TR ZOOM STEREO BODY

Body:  Trinocular, all metal body, rotatable 360.   The specimen can be viewed through both eyetubes while being observed on a monitor or photographed with a 35mm or digital camera.  Features include extra long working distance of 233mm with optional 0.7X lens. A socket is provided for a fiber optic light pipe.

Zoom Ratio:  6.2:1
Zoom Range:  0.4X to 2.5X
Zoom Control:  Dual, graduated, bilateral mount
Magnification Range:  4X - 2.5X (with 10X eyepieces)
Field of View:  57mm - 3mm
Working Distance:  185mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual (+ 5 diopters)

Extended Magnification Range:  1.4X - 75X (with optional auxiliary lenses & eyepieces)
Extended Field of View:  82.1mm - 4.4mm (w/optional lens)
Extended Working Distance:  233mm (with optional lens)





EMZ-5 ZOOM STEREO BODY

Body:  Binocular, all metal body, rotatable 360
Zoom Ratio:  6.5:1
Zoom Range:  0.7X to 4.5X
Zoom Control:  Dual, graduated, bilateral mount
Magnification:  7X - 45X (with 10X eyepieces)
Field of View:  32mm - 5.1mm
Working Distance:  93mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  2.1X - 270X
Extended Working Distances (with supplemental
objectives and eyepieces):  34mm - 251mm



EMZ-5TR ZOOM STEREO BODY

Body:  Trinocular, all metal body, rotatable 360. For use in photographic & video applications. The image can still be viewed through the right eyetube.
Zoom Ratio:  6.5:1
Zoom Range:  0.7X to 4.5X
Zoom Control:  Dual, graduated, bilateral mount
Magnification:  7X - 45X (with 10X eyepieces)
Field of View:  32mm - 5.1mm
Working Distance:  93mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  2.1X - 270X
Extended Working Distances (with supplemental objectives
and eyepieces):  34mm - 251mm



EMZ-10 ZOOM STEREO BODY

Body:  Binocular, all metal body, rotatable 360
Zoom Ratio:  6.5:1
Zoom Range:  0.7X to 4.5X
Zoom Control:  Dual, graduated, bilateral mount
Magnification:  7X - 45X (with 10X eyepieces)
Field of View:  32mm - 5.1mm
Working Distance:  110mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  2.1X - 270X
Extended Working Distances (with supplemental
objectives and eyepieces):  45mm - 332mm



EMZ-8TR ZOOM STEREO BODY

Body:  Trinocular, all metal body, rotatable 360. For use in photographic & video applications. The video image can be viewed through both eyetubes.
Zoom Ratio:  6.5:1
Zoom Range:  0.7X to 4.5X
Zoom Control:  Dual, graduated, bilateral mount
Magnification:  7X - 45X (with 10X eyepieces)
Field of View:  32mm - 5.1mm
Working Distance:  104mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  2.45X - 202.5X
Extended Working Distances (with supplemental objectives
and eyepieces):  57mm - 250mm



EMZ-2 ZOOM STEREO BODY

Body:  Binocular, all metal body, rotatable 360
Zoom Ratio:  6.5:1
Zoom Range:  0.7X to 4.5X
Zoom Control:  Graduated knurled ring
Magnification:  7X - 45X (with 10X eyepieces)
Field of View:  32mm - 5.1mm
Working Distance:  93mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  2.1X - 270X
Extended Working Distances (with supplemental
objectives and eyepieces):  34mm - 251mm

EMZ-2TR ZOOM STEREO BODY

Body:  Trinocular, all metal body, rotatable 360
Zoom Ratio:  6.5:1
Zoom Range:  0.7X to 4.5X
Zoom Control:  Graduated knurled ring
Magnification:  7X - 45X (with 10X eyepieces)
Field of View:  32mm - 5.1mm
Working Distance:  93mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  2.1X - 270X
Extended Working Distances (with supplemental objectives
and eyepieces):  34mm - 251mm



EMZ-1 ZOOM STEREO BODY

Body:  Binocular, all metal body, rotatable 360
Zoom Ratio:  3.1
Zoom Range:  1X to 3X
Zoom Control:  Graduated knurled ring
Magnification:  10X - 30X (with 10X eyepieces)
Field of View:  23mm - 7.7mm
Working Distance:  93mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  3X - 180X
Extended Working Distances (with supplemental
objectives and eyepieces):  34mm - 251mm

EMZ-9 ZOOM STEREO BODY

Body:  Binocular, all metal body, rotatable 360
Zoom Ratio:  6.5:1
Zoom Range:  0.7X to 4.5X
Zoom Control:  Dual, graduated, bilateral mount
Magnification:  7X - 45X (with 10X eyepieces)
Field of View:  32mm - 5.1mm
Working Distance:  93mm
Eyetube Inclination:  60
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  2.1X - 270X
Extended Working Distances (with supplemental objectives
and eyepieces):  34mm - 235mm



EMZ-6 ZOOM STEREO BODY

Body:  Trinocular, all metal body, rotatable 360
Zoom Ratio:  6.5:1
Zoom Range:  0.65X to 4.2X
Zoom Control:  Dual, graduated, bilateral mount
Magnification:  6.5X - 42X (with 10X eyepieces)
Field of View:  35mm - 5.4mm
Working Distance:  108mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  1.95X - 252X
Extended Working Distances (with supplemental
objectives and eyepieces):  34mm - 235mm

Z-7100 ZOOM STEREO BODY

Body:  Biinocular, all metal body, rotatable 360
Zoom Ratio:  6.5:1
Zoom Range:  0.7X to 4.5X
Zoom Control:  Dual, graduated, bilateral mount
Magnification:  7X - 45X (with 10X eyepieces)
Field of View:  32mm - 5.1mm
Working Distance:  110mm
Eyetube Inclination:  90
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Dual ( 5 diopters)

Extended Magnification Range:  2.1X - 270X
Extended Working Distances (with supplemental objectives
and eyepieces):  45mm - 332mm





FOCUS BLOCKS

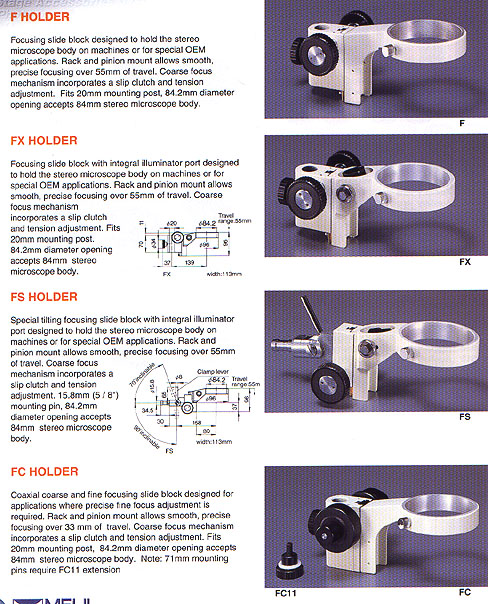

F Holder Focusing slide block designed to hold the stereo microscope body on machines or for special OEM applications.  Fits 20mm mounting post, 84.2mm diameter opening accepts 84mm stereo microscope body.

Focus Arms.jpg (159122 bytes)

Click on above photo for full
description of these focus blocks.

FX Holder Focusing slide block with integral illuminator port designed to hold the stereo microscope body on machines or for special OEM applications.  Fits 20mm mounting post, 84.2mm diameter opening accepts 84mm stereo microscope body.
FS Holder Special tilting focusing slide block with integral illuminator port designed to hold the stereo microscope body on machines or for special OEM applications.   15.8mm (5/8") mounting pin, 84.2mm diameter opening accepts 84mm stereo microscope body.
FC Holder Coaxial coarse & fine focusing slide block designed for applications where precise fine focus adjustment is required.  Fits 20mm mounting post, 84.2mm diameter opening accepts 84mm stereo microscope body.



POLE-TYPE STANDS

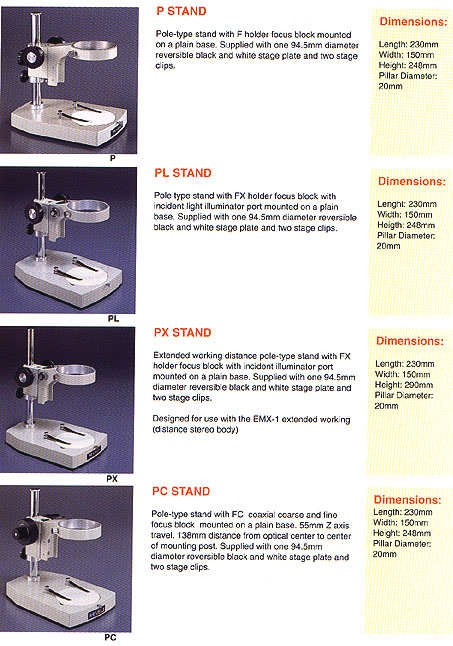

P Stand Pole-type stand with F holder focus block mounted on a plain base.   Supplied with one 94.5mm diameter reversible black & white stage plate and two stage clips.


Click on above photo for full
description of these stands.

PL Stand Pole-type stand with FX holder focus block with incident light illuminator port mounted on a plain base.  Supplied with one 94.5mm diameter reversible black & white stage plate and two stage clips.
PX Stand Extended working distance (for use with EMX-1) pole-type stand with FX holder focus block with incident light illuminator port mounted on a plain base.   Supplied with one 94.5mm diameter reversible black & white stage plate and two stage clips.
PC Stand Pole-type stand with FC coaxial coarse & fine focus block mounted on a plain base.  Supplied with one 94.5mm diameter reversible black & white stage plate and two stage clips.
PB Stand With integral focus block and transmitted & incident halogen illumination. For use with fixed or turret type stereo bodies.


Click on above photo for full
description of these stands.

PBM Stand With integral focus block and transmitted & incident halogen illumination. For use with zoom stereo bodies.
PBH Stand With integral focus block, extendable working distance, and transmitted & incident halogen illumination.
BX Stand With integral focus block and dual-reflection lens system for incident & transmitted illumination. Rotatable mirror provides transmitted light brightfield or "pseudo" darkfield illumination.



RIGID ARM STANDS
A Stand With integral focus block mounted on plain base. For use with fixed or turret type stereo bodies.


Click on above photo for full
description of these stands.

AZ Stand With integral focus block mounted on plain base. For use with zoom stereo bodies.
AB Stand With integral focus block and transmitted & incident tungsten illumination. For use with fixed or turret type stereo bodies.
ABZ Stand With integral focus block and transmitted & incident tungsten illumination. For use with zoom stereo bodies.
ABH Stand With integral focus block and transmitted & incident halogen illumination. For use with fixed or turret type stereo bodies.


Click on above photo for full
description of these stands.

ABZH Stand With integral focus block and transmitted & incident halogen illumination. For use with zoom stereo bodies.
ABE Stand With integral focus block, extendable working distance, and transmitted & incident halogen illumination.
B Stand With integral focus block and dual-reflection lens system for incident & transmitted illumination. Rotatable mirror provides transmitted light brightfield or "pseudo" darkfield illumination.



STANDS WITH EXTENDED WORK SURFACE
KBL Stand Pole type stand with FX holder focus block with incident illuminator port mounted on 380mm x 330mm x20mm flat laminate base.


Click on above photo for full
description of these stands.

KBE Stand Rigid arm type stand with integral focus block mounted on 380mm x 330mm x 20mm flat laminate base.
SBU Stand Special universal-type stand with pillar, crossarm and monting post mounted directly over a large flat laminate work surface.
UL Stand Special universal-type stand with pillar, crossarm, mounting post, and rotatable tray to hold optional fiber optic light source.



UNIVERSAL BOOM STANDS
S-4100 Stand Industrial type boom stand with 20mm mounting post for F, FX or FC holders.


Click on above photo for full
description of these stands.

S-4200 Stand Extended working distance industrial type boom stand with 20mm mounting post for F, FX or FC holders.
S-4300 Stand Industrial type boom stand with adapter for FS holder.
S-4400 Stand Extended working distance industrial-type boom stand with adapter for FS holder.



ARTICULATED ARM STANDS, CLAMP BOOM STAND,
EXTENDED WORK SURFACE STAND

FA-1 Stand Articulated arm stand for bench top attachment.  Supplied with mounting flange, 2 piece folding arm, vertical mounting pillar and 20mm diameter mounting pin for focus block.


Click on above photo for full
description of these stands.

FA-2 Stand Articulated arm stand designed for mounting to a vertical surface.   Supplied with mounting flange, 2 piece folding arm, vertical mounting pillar and 20mm diameter mounting pin for focus block.
S-4500 Stand Industrial type boom stand with 20mm mounting post for F, FX and FC holders.
MU Stand Special universal stand with pillar, crossarm and mounting post mounted over a laminate work surface.

NOTE:  F, FX or FC holder must be ordered separately.



To view a complete list of Meiji Techno microscopes, please click here.

For more information on a product or to request a price quote, please contact us by phone at 877-837-7260 (toll free) or 408-871-7700, fax 408-871-7800, or email us at labtekdiv@labtek.net.



[Home]  [Microscopes]  [Illumination]   [Video & Lenses]  [Measuring]
[Services]  [Vendor List]  [Specials]



Copyright 2010, Terran Technology, Inc.; Labtek Division
Last modified: November 06, 2012
