MEIJI TECHNO EMT SERIES TURRET STEREO MICROSCOPES

Meiji Techno's EMT Series offer a combination of superb optics, rugged dependability, economical pricing, and wide range of accessories.

Modular Flexibility:  Meiji stereo microscopes are tailored to fit the needs of each and every customer.  Modular design enables the user to engineer his own custom solution for virtually any application, selecting components from a wide range of stereo bodies, stands, eyepieces, supplementary lenses, illuminators, and accessory components.

Superb Optics: Multi-coated optical components, free from chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images rich in contrast, brightness, and correct in color. Excellent depth of field and flatness of image.

Rugged Dependability:   Metal aluminum alloy microscope bodies and components with chemical-resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship with quality components and materials result in long-lasting, high-performance microscopes.

Meiji EMT Turret Stereo Zoom Microscopes:

EMT-1, EMTR-1 (10X to 20X, 108mm WD)
EMT-2, EMTR-2 (10X to 30X, 81mm WD)
EMT-3, EMTR-3 (20X to 40X, 63mm WD)
EMT-4, EMTR-4 (10X to 40X, 63mm WD)

Available types of focus blocks and stands:

Focus Blocks
Pole-Type Stands
Rigid Arm Stands
Stands with Extended Work Surface
Universal Boom Stands
Articulated Arm Stands, Clamp Boom Stand, Extended Surface Stand

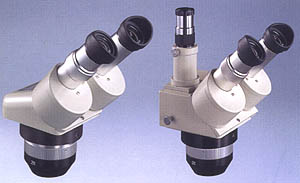

EMT-1 & EMTR-1 TURRET STEREO BODY

Body: Binocular or trinocular, all metal body, rotatable 360
Paired Objectives:  1X, 2X
Magnification:  10X - 20X (with 10X eyepieces)
Field of View:  23mm - 11.5mm
Working Distance:  108mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Left eyetube

Extended Magnification Range:  5X - 60X
Extended Working Distances:  None

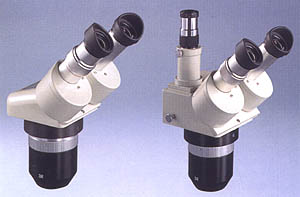

Body: Binocular or trinocular, all metal body, rotatable 360
Paired Objectives:  1X, 3X
Magnification:  10X - 30X (with 10X eyepieces)
Field of View:  23mm - 7.7mm
Working Distance:  81mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Left eyetube

Extended Magnification Range:  5X - 180X
Extended Working Distances (with supplemental objectives and eyepieces):  21mm - 96mm

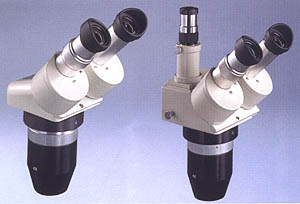

Body: Binocular or trinocular, all metal body, rotatable 360
Paired Objectives:  2X, 4X
Magnification:  20X - 40X (with 10X eyepieces)
Field of View:  11.5mm - 5.75mm
Working Distance:  63mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Left eyetube

Extended Magnification Range:  10X - 240X
Extended Working Distances (with supplemental objectives and eyepieces):  21mm - 96mm

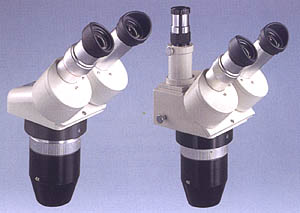

EMT-4 & EMTR-4 TURRET STEREO BODY

Body: Binocular or trinocular, all metal body, rotatable 360
Paired Objectives:  1X, 4X
Magnification:  10X - 40X (with 10X eyepieces)
Field of View:  23mm - 5.7mm
Working Distance:  63mm
Eyetube Inclination:  45
Interpupilliary Distance Adjustment:  54mm - 75mm
Dioptric Adjustment:  Left eyetube

Extended Magnification Range:  5X - 240X
Extended Working Distances (with supplemental objectives and eyepieces):  21mm - 96mm



FOCUS BLOCKS
F Holder Focusing slide block designed to hold the stereo microscope body on machines or for special OEM applications.  Fits 20mm mounting post, 84.2mm diameter opening accepts 84mm stereo microscope body.

Focus Arms.jpg (159122 bytes)

Click on above photo for full
description of these focus blocks.

FX Holder Focusing slide block with integral illuminator port designed to hold the stereo microscope body on machines or for special OEM applications.  Fits 20mm mounting post, 84.2mm diameter opening accepts 84mm stereo microscope body.
FS Holder Special tilting focusing slide block with integral illuminator port designed to hold the stereo microscope body on machines or for special OEM applications.   15.8mm (5/8") mounting pin, 84.2mm diameter opening accepts 84mm stereo microscope body.
FC Holder Coaxial coarse & fine focusing slide block designed for applications where precise fine focus adjustment is required.  Fits 20mm mounting post, 84.2mm diameter opening accepts 84mm stereo microscope body.



POLE-TYPE STANDS
P Stand Pole-type stand with F holder focus block mounted on a plain base.   Supplied with one 94.5mm diameter reversible black & white stage plate and two stage clips.


Click on above photo for full
description of these stands.

PL Stand Pole-type stand with FX holder focus block with incident light illuminator port mounted on a plain base.  Supplied with one 94.5mm diameter reversible black & white stage plate and two stage clips.
PX Stand Extended working distance (for use with EMX-1) pole-type stand with FX holder focus block with incident light illuminator port mounted on a plain base.   Supplied with one 94.5mm diameter reversible black & white stage plate and two stage clips.
PC Stand Pole-type stand with FC coaxial coarse & fine focus block mounted on a plain base.  Supplied with one 94.5mm diameter reversible black & white stage plate and two stage clips.
PB Stand With integral focus block and transmitted & incident halogen illumination. For use with fixed or turret type stereo bodies.


Click on above photo for full
description of these stands.

PBM Stand With integral focus block and transmitted & incident halogen illumination. For use with zoom stereo bodies.
PBH Stand With integral focus block, extendable working distance, and transmitted & incident halogen illumination.
BX Stand With integral focus block and dual-reflection lens system for incident & transmitted illumination. Rotatable mirror provides transmitted light brightfield or "pseudo" darkfield illumination.



RIGID ARM STANDS
A Stand With integral focus block mounted on plain base. For use with fixed or turret type stereo bodies.


Click on above photo for full
description of these stands.

AZ Stand With integral focus block mounted on plain base. For use with zoom stereo bodies.
AB Stand With integral focus block and transmitted & incident tungsten illumination. For use with fixed or turret type stereo bodies.
ABZ Stand With integral focus block and transmitted & incident tungsten illumination. For use with zoom stereo bodies.
ABH Stand With integral focus block and transmitted & incident halogen illumination. For use with fixed or turret type stereo bodies.


Click on above photo for full
description of these stands.

ABZH Stand With integral focus block and transmitted & incident halogen illumination. For use with zoom stereo bodies.
ABE Stand With integral focus block, extendable working distance, and transmitted & incident halogen illumination.
B Stand With integral focus block and dual-reflection lens system for incident & transmitted illumination. Rotatable mirror provides transmitted light brightfield or "pseudo" darkfield illumination.



STANDS WITH EXTENDED WORK SURFACE
KBL Stand Pole type stand with FX holder focus block with incident illuminator port mounted on 380mm x 330mm x20mm flat laminate base.


Click on above photo for full
description of these stands.

KBE Stand Rigid arm type stand with integral focus block mounted on 380mm x 330mm x 20mm flat laminate base.
SBU Stand Special universal-type stand with pillar, crossarm and monting post mounted directly over a large flat laminate work surface.
UL Stand Special universal-type stand with pillar, crossarm, mounting post, and rotatable tray to hold optional fiber optic light source.



UNIVERSAL BOOM STANDS
S-4100 Stand Industrial type boom stand with 20mm mounting post for F, FX or FC holders.


Click on above photo for full
description of these stands.

S-4200 Stand Extended working distance industrial type boom stand with 20mm mounting post for F, FX or FC holders.
S-4300 Stand Industrial type boom stand with adapter for FS holder.
S-4400 Stand Extended working distance industrial-type boom stand with adapter for FS holder.



ARTICULATED ARM STANDS, CLAMP BOOM STAND,
EXTENDED WORK SURFACE STAND

FA-1 Stand Articulated arm stand for bench top attachment.  Supplied with mounting flange, 2 piece folding arm, vertical mounting pillar and 20mm diameter mounting pin for focus block.


Click on above photo for full
description of these stands.

FA-2 Stand Articulated arm stand designed for mounting to a vertical surface.   Supplied with mounting flange, 2 piece folding arm, vertical mounting pillar and 20mm diameter mounting pin for focus block.
S-4500 Stand Industrial type boom stand with 20mm mounting post for F, FX and FC holders.
MU Stand Special universal stand with pillar, crossarm and mounting post mounted over a laminate work surface.

NOTE:  F, FX or FC holder must be ordered separately.
